Replacement Transmitter Model TX-7

Model #: TX-7
Reg: $75.99
Today's Sale Price:
  • Power Mode Indicator
  • Cable Status Indicator
  • Smart Power Switch
  • Audible Cable Break Alarm
  • Field Width Control
  • Power Boost Switch
Click to enlarge

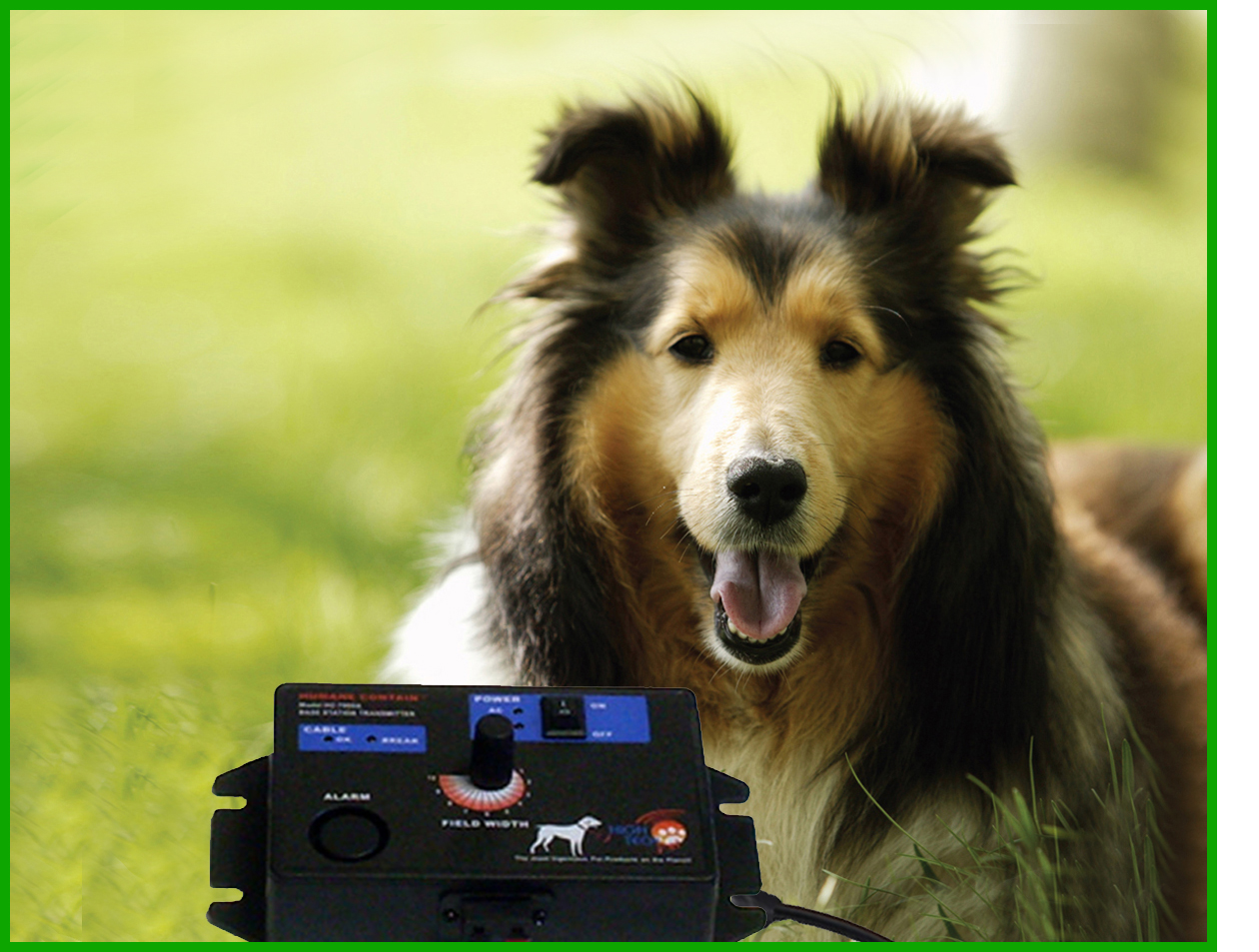

TX-7 Pet Fence Base Station Transmitter

Economical, Yet Sophisticated!
Our Model TX-7 Replacement transmitter comes standard with all Humane Contain™ HC-7000 series electronic dog fences.

20 Acre Range: Few competing systems come close to this range. Of course the TX-7 works equally well on yards as small as 1/10 of an acre.
Variable Field Width Control: Allows you to precisely control the width of the signal field.
Audible and Visual Cable Break Indicators: Should your buried cable ever break, a loud sonic alarm will sound accompanied by a bright flashing LED lamp.
Power: This indicates the power mode, either AC or Back-up Battery. The TX-7 Base Station uses a “smart” power system. If you have the optional 9 volt back-up batteries installed and there is a power failure, the system automatically switches to battery mode to keep the boundary field energized and your dog contained. In this mode all indicator lamps flash to conserve battery power. When power is restored, the system automatically switches back to AC mode. The operating time of the Back-up Battery depends upon your field strength setting and the length of your boundary wire. Typical installations will operate for a full day in Battery Back-up mode.
Field Strength Control: You can control the distance from the boundary wire at which the receiver collar will begin to activate by use of the “FIELD WIDTH” dial. Turning the dial clockwise increases transmitter output power and therefore, increases field width. The maximum field width possible will depend upon your particular installation. It is affected by the depth at which you bury the wire and the total length of wire used. The greater the wire depth and length, the less maximum field will be available. Generally, we recommend that you bury your boundary wire no more than 4 inches deep and use no more than 2,500 feet of total boundary wire. Typical installations yield a maximum possible field width of approximately 25 feet. We recommend that you set the Field Width of at least 5 feet. The wider your boundary field, the more time and distance your dog has to properly react to the system. However, if space limitations require a field width of less than 5 feet. You can reduce the overall field width by turning the Field Width dial counter-clockwise. When you vary the effective field width of your system, the HC-7000’s unique Pulsed Proportional Stimulus System will automatically adjust to the new field strength setting.
Quick Connect Wire Terminals: At the bottom of the Base Station Transmitter you will find two quick connect wire terminals. The boundary wire easily plugs into these terminals by simply depressing the tab and inserting the wire end. The wire should be stripped by 1/2 inch at the end before insertion. No other preparation is required.
Backup Battery Compartment: On the right side of the BASE station transmitter you will find a compartment to hold two standard 9 volt alkaline batteries for powering the system when AC power is temporarily lost.
With all these features, you might expect to pay a lot more. We think you'll agree that this is a great value in a sophisticated underground fence transmitter base station.


TX-7 Transmitter
9 vdc 200 mA AC Adapter
Mounting Hardware
