Short Loop Test


Keep Your Pups Safe by Repairing and Maintaining Your Aging High Tech Pet Electronic Dog Fence









This test is designed to identify if the malfunction is occurring  in the collar, the
transmitter or the wire loop.

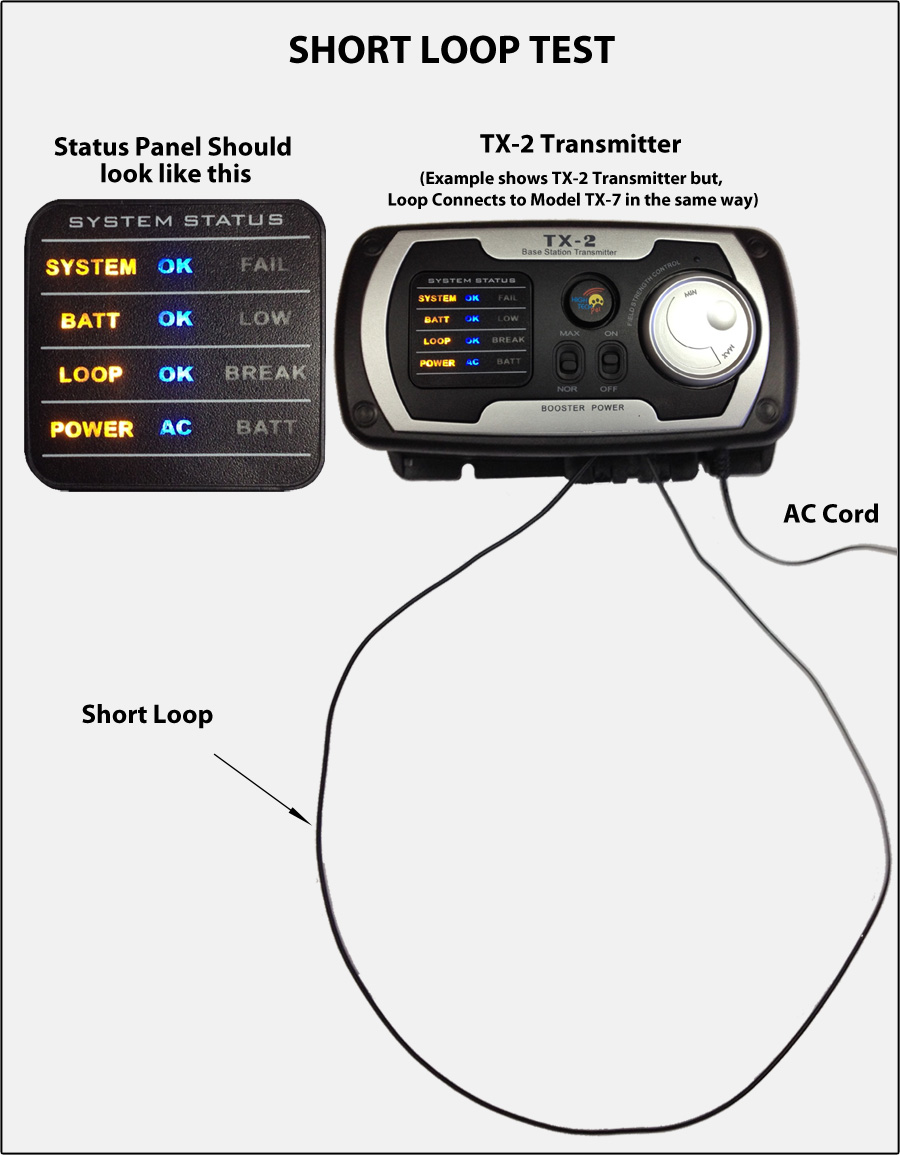

1. CONNECT YOUR SHORT LOOP


Disconnect the outdoor wire loop from your  transmitter. Cut a piece of wire about 10" long and strip the ends  exposing about ¼ inch of the copper wire. Plug the ends into the transmitter terminals in place of the outdoor loop wire. Turn on your transmitter.

2. TEST YOUR TRANSMITTER

TX-2 TRANSMITTER:


If you  are using a TX-2 transmitter that came with your HC-8000 or X-10 series electronic dog fence, power the transmitter with the AC adapter and perform the following tests. The SYSTEM  STATUS PANEL should display the following:

SYSTEM: If no indicators are illuminated, your transmitter needs to be replaced. "OK" indicates that all circuitry, hardware and software are functioning properly.  If the "FAIL" indicator is illuminated with the short loop installed, your transmitter needs to be replaced.

BATT: (If no back-up battery is installed this indicator will be dim.) "LOW" indicates a weak back-up battery. The battery will automatically recharge via the AC wall adapter. "OK" indicates a good back-up
battery charge.

LOOP: If no indicators are illuminated, your transmitter needs to be replaced. "OK" Indicates that there is electrical continuity in the short loop. If the "BREAK" indicator is illuminated with the short loop installed, your transmitter needs to be replaced.

Disconnect one of the ends of your short loop from its terminal. The audible warning should sound and the LOOP "BREAK" indicator should illuminate. If this is not the case, your transmitter needs to be replaced.

Reconnect your short loop.

POWER: If no indicators are illuminated, your transmitter needs to be replaced. "AC" Means the unit is being powered by the AC wall adapter "BATT" Means that the unit is being powered by the rechargeable back-up battery. Since you are powering your transmitter with the AC wall adapter the "AC" indicator should be
illuminated. If it is not, your transmitter needs to be replaced.

If you have a back-up battery, turn your transmitter off and install the battery. With the AC wall adapter plugged in, turn the transmitter back on. The POWER "AC" indicator should illuminate and the "BATT" indicator should show either "OK" or "LOW" depending on battery charge. If this is not the case, your transmitter needs to be replaced.

Unplug the AC adapter from the transmitter. All appropriate indicators should now flash. The POWER "BATT" indicator should be flashing and the "AC" indicator should be dim. If this is not the case, your transmitter needs to be replaced.

TX-7 TRANSMITTER:


If you are using the TX-7 transmitter that came with your HC-7000 series electronic dog fence, make sure you are powering the unit with the AC wall adapter. Turn the transmitter on. The panel LEDs should indicate the following:

CABLE: If neither LED is illuminated, your transmitter needs to be replaced. The "OK" LED Indicates that there is electrical continuity the short loop. This LED should be illuminated. If the "BREAK" LED is illuminated your transmitter needs to be replaced.

POWER: The "AC" LED should be illuminated. If it is not, your transmitter your transmitter needs to be replaced.

If you have a 9 volt alkaline battery, plug it into the transmitter. (Note that the TX-7 accepts two non-rechargeable batteries. For testing purposes you may use only one however, using two is also acceptable. Unplug the AC wall adapter from the transmitter. The green CABLE "OK" LED should flash and the red POWER "BATT" LED should also flash. If this is not the case, the transmitter needs to be replaced.

Disconnect one of the ends of your short loop from its terminal. The audible warning should sound and the CABLE "BREAK" LED should illuminate. If this is not the case, your transmitter needs to be replaced.

Reconnect your short loop.

3. TEST YOUR COLLAR


For the RC-7 and RC-8 collars, make sure there is a new battery installed before performing the following test. For the RX-10 make sure the collar has been charged for a full three hours. The RX-10 must be turned on.

  • Press the "TEST" button on your collar. The LED should illuminate indicating good battery charge and a tone should sound indicating good shock output. If either of these indications fails, your collar needs to be replaced.

  • Power your transmitter with the AC wall adapter and turn it on. Turn the FIELD WIDTH (STRENGTH) control fully clockwise. Make sure you are not touching the collar shock probes. Starting about 10' back from the short loop slowly bring the collar toward the loop.  A few feet from the loop the collar should begin to beep. As you move the collar closer to the loop the rate of the beeps should increase. If the collar does not beep very close to the loop, it needs to be replaced.

  • Now turn the FIELD WIDTH (STRENGTH) control fully counter-clockwise. Making sure you are not touching the shock probes, bring the collar very close to the short loop. If the collar beeps, your transmitter is defective and needs to be replaced.

TEST YOUR OUTSIDE FIELD WIRE

  • Disconnect your short loop and reconnect your outside wire loop. Turn your transmitter on. If the LOOP or CABLE indicator shows "BREAK" there is a break in your outdoor wire. You will need to locate and repair the break.

  • If the LOOP or CABLE indicator shows "OK" and you are still having a problem with your system, the problem is most likely in your wire set up. Either the wire is laid out incorrectly or there are environmental issues such as buried power lines, or large metal objects interfering with and corrupting the RF signal. To check your wire layout refer to your user manual.
